2.5mm thick fluorocarbon aluminum plate for high-end hotel curtain wall has a 20-year warranty for typhoon resistance
PRODUCT DESCRIPTION
1. Substrate requirements
- Made of high-quality 3003/5005 aluminum alloy, the thickness is strictly controlled at 2.5±0.1mm to ensure strength and flatness.
- Plates need to be degreased and chromed to enhance surface adhesion and corrosion resistance.

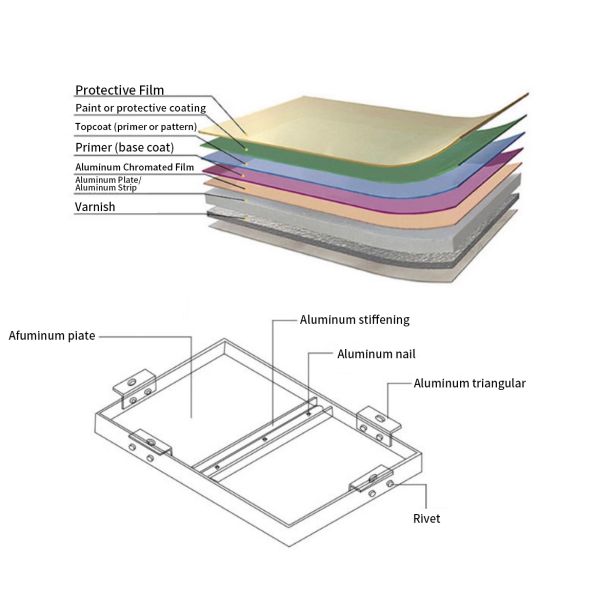

2. Fluorocarbon coating process
- Three coats and two bakes (primer, topcoat, varnish) with a total coating thickness of ≥ 40μm in accordance with AAMA 2605*.
- PVDF fluorocarbon resin accounts for ≥70%, and has UV resistance and weather resistance for more than 20 years.
3. Surface effect
- Optional matte/metallic gloss, color support RAL/Pantone color card customization, color difference ΔE≤1.0.
- Additional imitation stone/wood grain transfer process to meet high-end decoration needs.
4. Performance advantages
- Weather resistance: -40°C~80°C without cracking and pulverization, passed the 3000 hours salt spray test.
- Self-cleaning: low surface energy, can be cleaned by rain, reducing maintenance costs.
5. Installation adaptability
- Pre-installed stiffeners and buckle grooves, suitable for dry hanging system, wind pressure resistance ≥ 9kPa (12 wind levels).
Features
1. High weather resistance: PVDF fluorocarbon coating, UV resistance, acid and alkali resistance, 20 years of non-fading powdering, adaptable to extreme climates.
2. Lightweight and high strength: 2.5mm thick aluminum alloy substrate, light weight (about 7kg/㎡) but wind pressure resistance up to 9kPa, high safety.
3. Fire safety: A2 grade non-combustible material, in line with building fire protection codes, to ensure the public safety of the hotel.
4. Customized appearance: Support imitation stone, wood grain and other transfer processes, and the color (RAL color card) accurately matches the hotel design style.
5. Convenient installation: pre-installed stiffeners and buckle grooves, adapted to the dry hanging system, high construction efficiency and good flatness.
6. Environmental protection and energy saving: The high reflectivity of the surface reduces heat absorption and reduces air conditioning energy consumption, meeting green building standards.
Installation principle:
1. Keel support: A light steel or aluminum alloy keel frame is used to ensure the overall structural stability and load-bearing needs.
2. Dry hanging system: Connected with the keel through metal pendants, it realizes welding-free installation and reduces the risk of thermal deformation.
3. Floating design: Expansion joints (5-8mm) are reserved between plates to adapt to thermal expansion and contraction, avoiding deformation and cracking.
4. Three-dimensional adjustable: the pendant can be adjusted horizontally, longitudinally and forward and backward to ensure the flatness of the curtain wall (error ≤ 2mm).
5. Sealing and waterproofing: The seams are filled with weather-resistant glue and waterproof rubber strips are installed to eliminate leakage hazards.
6. Modular assembly: Unit-type pre-assembled boards, directly hoisted on site, improving efficiency and reducing labor costs.
Company Profile
Guangdong Yueding Building Materials Co., Ltd. was established in 2008, is a design, production, sales as one of the entity and the Internet combined with the custom enterprise. The company covers an area of 15,000 square meters and has fully automatic spraying equipment. We have served on overseas projects all over the world. In terms of in-depth understanding of the needs of the market, we work with customers to produce products that are loved by users. Since the advent of Yueding products, the excellent product quality has been highly recognized and widely used by the market.
We adhere to the business philosophy of "personalized customization, quality service" to provide customers with high-quality solutions. Determined to create excellent product quality and perfect space environment is our persistent pursuit.
